Master Constant Torque Motor Control in 3 Key Steps

3 Essential Keys to Mastering Constant Torque Motor Control

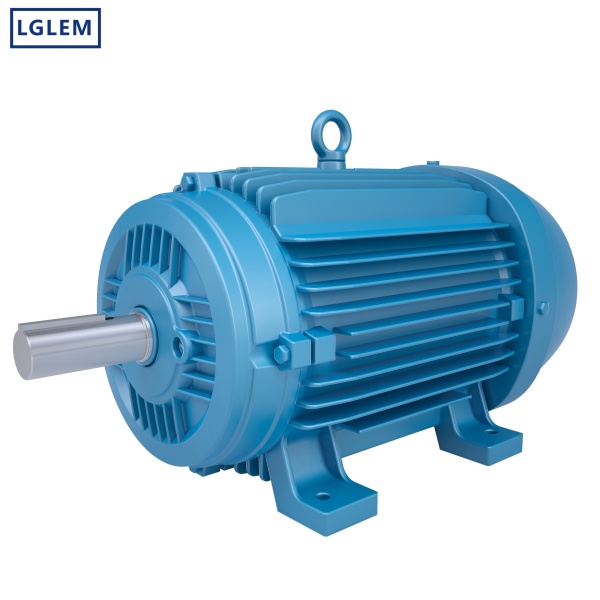

Constant torque motor operation is the core control mode for low-speed, heavy-load scenarios, widely used in applications such as machine tool feeds, conveyor belts, and lifting equipment. Its main goal is to maintain a steady torque below the base speed while ensuring smooth startup and adaptable load performance. Achieving reliable constant torque control requires mastering three essential keys to prevent torque fluctuations, overloads, and ensure efficient, stable motor operation.

Key 1: Maintain a Constant U/f Ratio
Below base speed, the motor’s air-gap flux is directly proportional to the stator voltage and frequency. The stability of the voltage-to-frequency ratio (U/f) directly determines whether the magnetic flux remains constant. During control, voltage and frequency must be adjusted simultaneously to strictly keep the U/f ratio unchanged, avoiding magnetic flux saturation or deficiency that can cause torque drift. For asynchronous motors, additional stator voltage drop compensation is necessary to offset low-speed voltage drops and improve low-speed reliability.

Key 2: Precisely Control Current Components
Using vector control, the three-phase stator current is transformed into the dq coordinate system. The q-axis current directly corresponds to torque output and must be stabilized at the setpoint via closed-loop control. The d-axis current maintains constant excitation to ensure stable flux. Predefined current limits should be set to handle load changes and startup conditions, preventing surge currents that could damage power devices, and guaranteeing smooth, stable torque output.

Key 3: Compensate Disturbances and Adapt to Operating Conditions
Real-time monitoring of speed, load, and temperature is essential. When load changes abruptly, quickly adjust voltage and current ratios to compensate for torque deviations. Temperature-induced parameter drift should be addressed with dynamic calibration to correct resistance and inductance variations. Optimized startup logic, such as soft-start methods, reduces torque shocks and enables smooth startups under heavy loads, ensuring precise and stable constant torque control in all conditions.
