How Rotor Imbalance Leads to Motor Temperature Rise

The Impact of Rotor Imbalance on Motor Temperature Rise

Rotor imbalance is a common but often overlooked issue that can significantly affect the performance and service life of an electric motor. One of the most critical consequences of rotor imbalance is the increase in motor temperature rise during operation. Understanding the mechanisms behind this phenomenon can help prevent equipment failure and reduce maintenance costs.

1. Increased Mechanical Vibration

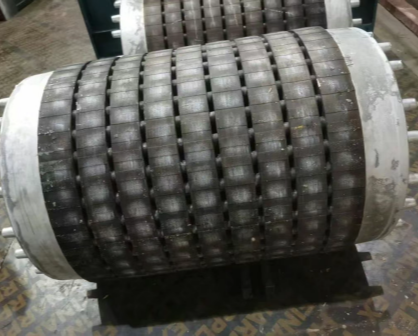

Rotor imbalance occurs when the mass of the rotor is not evenly distributed around the axis of rotation. This asymmetry generates centrifugal forces that cause the motor to vibrate. These mechanical vibrations put additional stress on the motor structure, including bearings, housings, and mounting frames. Over time, excessive vibration can lead to mechanical looseness, misalignment, and even fatigue failures.

2. Elevated Bearing Temperature

Vibration caused by rotor imbalance increases the dynamic load on the motor bearings. This uneven loading leads to higher friction, which in turn raises the temperature of the bearing assemblies. Inadequate lubrication caused by continuous micro-movements or grease displacement further accelerates wear and contributes to bearing overheating. This heat is then conducted to other motor components, raising the overall system temperature.

3. Uneven Air Gap and Magnetic Losses

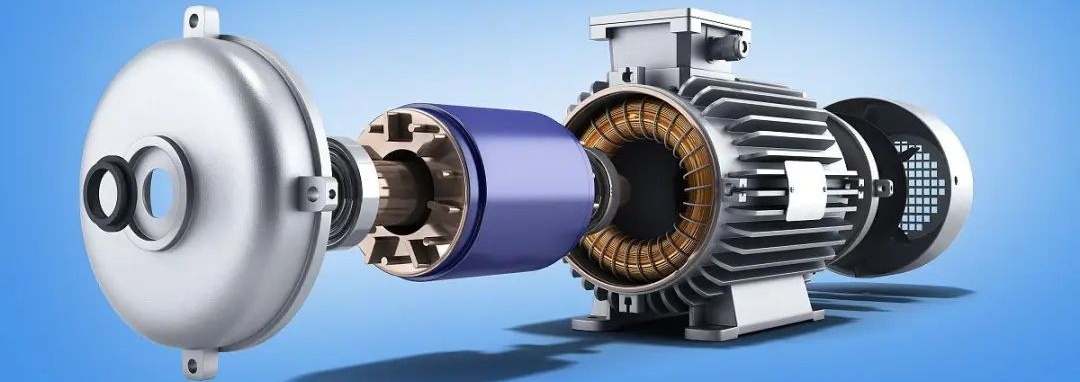

Rotor imbalance can also lead to a non-uniform air gap between the stator and the rotor. This asymmetry disturbs the magnetic field distribution and causes localized increases in core losses, such as eddy current and hysteresis losses. The resulting hot spots in the stator core or winding can trigger insulation degradation and unbalanced thermal stress.

4. Decreased Cooling Efficiency

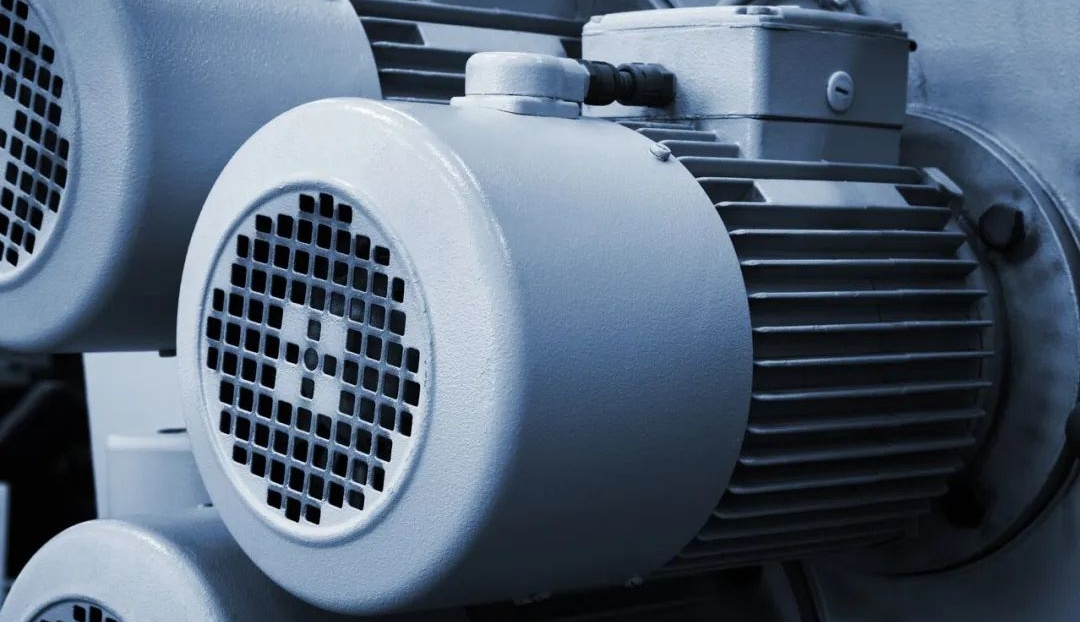

High vibration levels can interfere with the internal airflow patterns of a motor, especially in self-ventilated or fan-cooled designs. If the airflow is disrupted, the motor’s ability to dissipate heat is compromised. As a result, heat generated from both mechanical friction and electromagnetic losses accumulates, leading to a rapid temperature rise.

5. Reduced Insulation Life and Reliability

Temperature is a key factor in insulation aging. According to Arrhenius’ Law, for every 10°C rise in operating temperature, insulation life is halved. Therefore, a motor experiencing elevated temperatures due to rotor imbalance will suffer a much shorter service life. In critical applications, this can lead to sudden and costly unplanned downtime.

Rotor imbalance is not just a mechanical issue; it has direct thermal consequences that can jeopardize motor performance and reliability. Regular dynamic balancing during manufacturing, precision alignment, and periodic vibration monitoring are essential preventive measures. By addressing rotor imbalance early, companies can reduce maintenance costs, extend motor life, and ensure stable industrial operations.
