High vs Low Voltage Motors: Key Appearance Differences

Comparison and Analysis of Appearance Features Between High-Voltage Motors and Low-Voltage Motors

High-voltage motors and low-voltage motors exhibit significant differences in their external characteristics due to factors such as voltage class and power requirements. The details are as follows:

01 Frame Size and Structure:

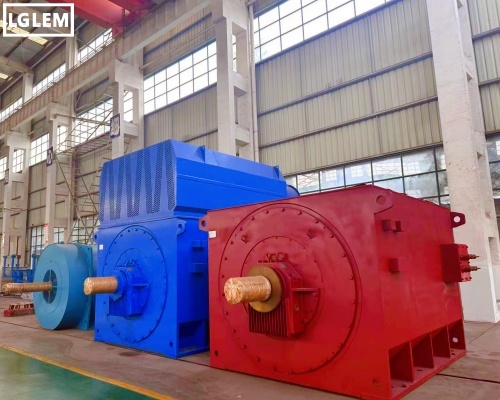

High-voltage motors, owing to their higher power output, require larger supporting structures. Their frame sizes typically start from 355 mm, with large motors reaching center heights exceeding 1000 mm. They generally adopt cast iron or welded steel plate construction, with thick frame walls and wide mounting feet that demand solid foundations.

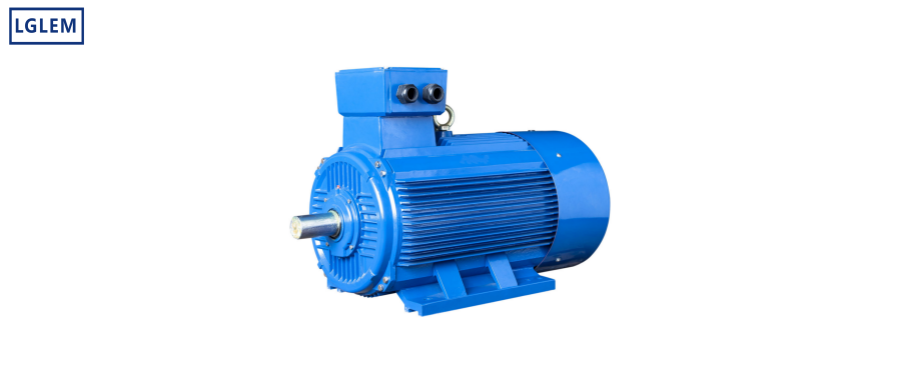

In contrast, low-voltage motors usually have center heights below 355 mm. Their frames are often made of cast iron or aluminum alloy, featuring simpler structures and compact dimensions, with smaller mounting feet and flexible installation options.
In the 355–400 mm center height range, both high-voltage and low-voltage motors can be matched to specific power ratings. However, in this range, the special requirements for conductors or insulation in high-voltage motors present certain manufacturing challenges.

02 Enclosure Protection and Cooling Method:
High-voltage motors have higher protection ratings (such as IP54 or IP55), with tightly sealed enclosures and complex cooling structures, often using air-to-air heat exchangers or water cooling systems. They are equipped with large fans or independent cooling blowers.
Low-voltage motors typically have protection ratings of IP44 or IP54 and use simple air cooling with built-in axial fans and surface cooling fins, suitable for general environments. Of course, motors with IP23 protection in both voltage classes also have specific application scenarios.

03 Terminal Box and Cable Entry:
High-voltage motors feature large terminal boxes with ample internal space. The cable entries use sealed cable glands, with the outlet direction commonly at the top or side, requiring high-voltage cable accessories.
Low-voltage motors have more compact terminal boxes with flexible outlet options, allowing direct connection to standard cables and requiring lower sealing performance.

04 Shaft Extension and Bearing Configuration:
High-voltage motors have larger shaft extension diameters, often using spline or tangential key designs. They adopt larger bearing sizes, mainly rolling or sleeve bearings, with some models equipped with temperature monitoring devices.
Low-voltage motors have smaller shaft extension diameters, usually with conventional parallel key connections and deep groove ball bearings, offering easier maintenance. To prevent shaft current issues, high-voltage motors are all equipped as standard with bearing insulation systems.

05 External Detail Features:
High-voltage motors have numerous and tall cooling fins arranged densely. They are equipped with large lifting rings or lugs, and the nameplate is marked “High Voltage” and high insulation classes (such as Class F or Class H). Some explosion-proof models adopt flameproof enclosures.
Low-voltage motors have fewer cooling fins, smaller or no lifting rings, and nameplates marked “Low Voltage” with standard insulation classes. Explosion-proof designs are more compact.

06 Application Scenario Differences:
High-voltage motors are suitable for high-power applications over 100 kW, such as mining, metallurgy, and large fans, and are designed to connect to 6kV or 10kV high-voltage grids.
Low-voltage motors are used in medium and small power equipment (380V/220V), such as machine tools and water pumps, and connect to conventional low-voltage power networks.

High-voltage motors are characterized by large dimensions, strong protection, and complex cooling, whereas low-voltage motors emphasize compactness, lower cost, and versatility. Motor selection should comprehensively consider power, operating conditions, and installation requirements.
